Thyroid Retractor |
Model No. | Type of clamp head | Specification |

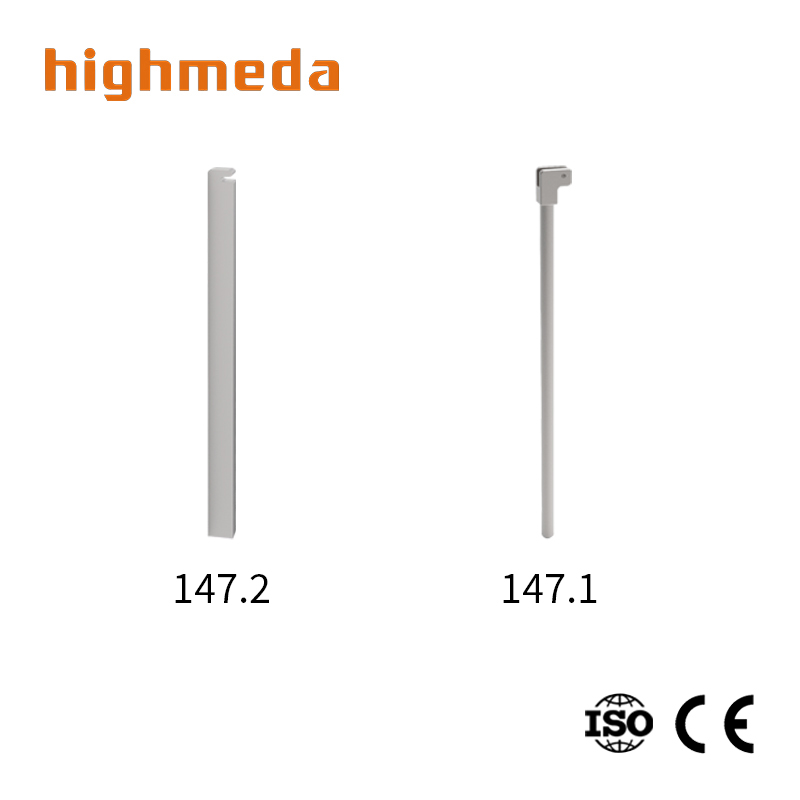

| 147.1 | Vertical Bars | / |
| 147.2 | Horizontal Bar | / |

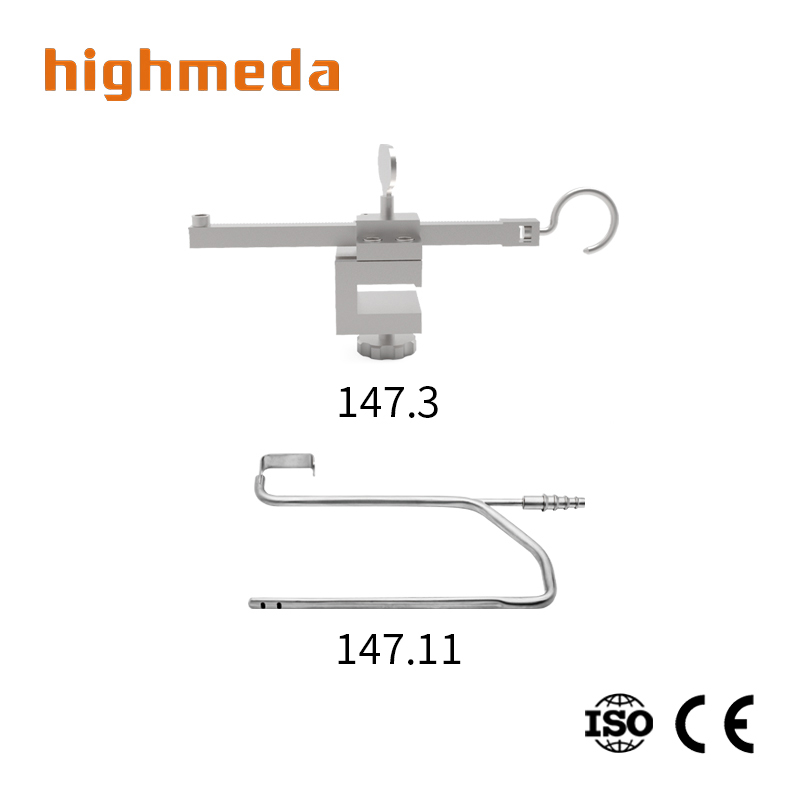

| 147.3 | Block Sliding Assembly | / |

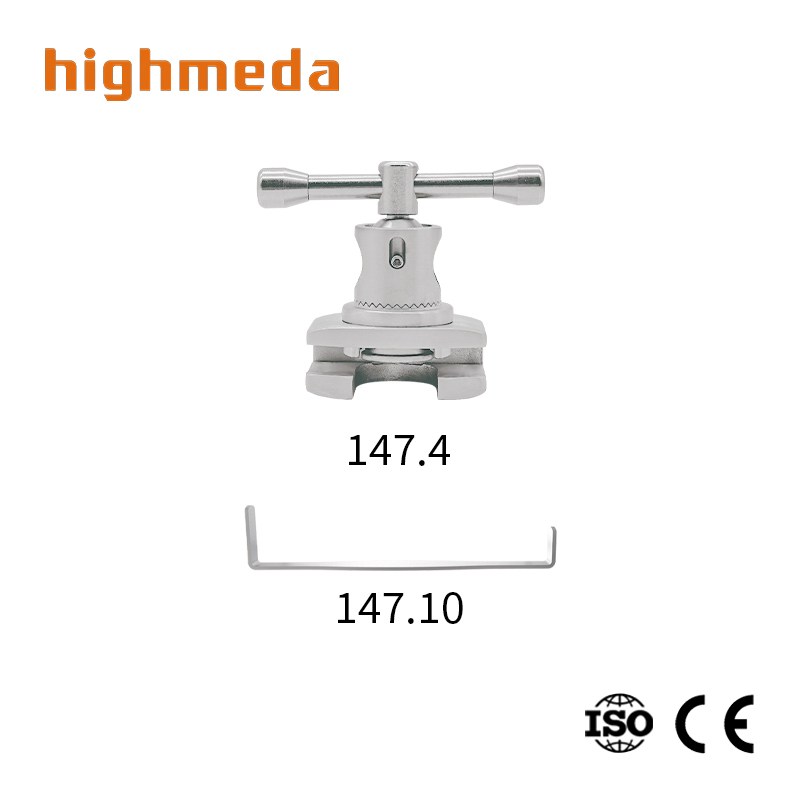

| 147.4 | Fixator | / |

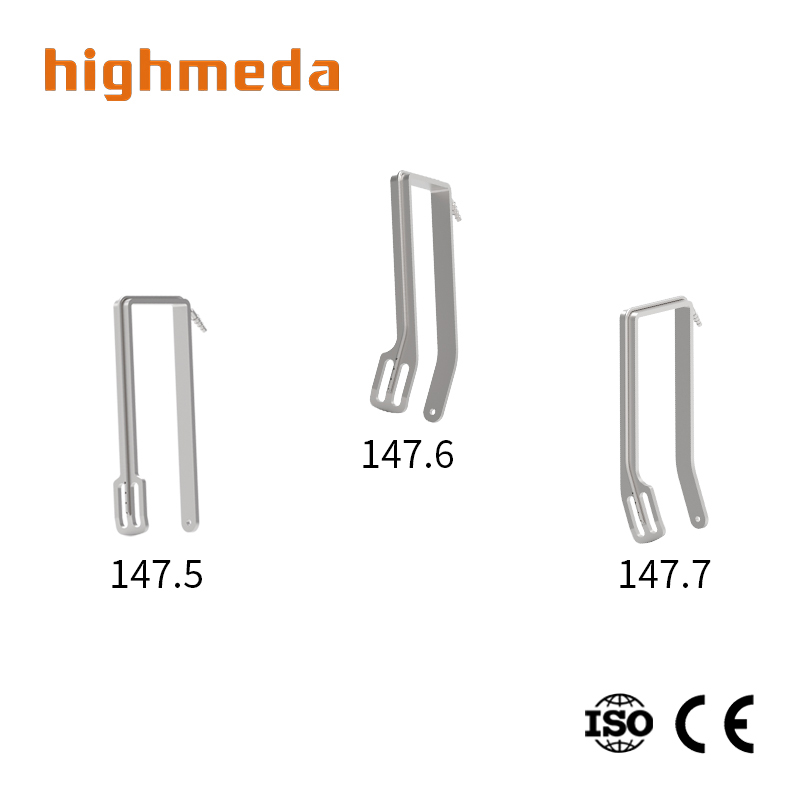

| 147.5 | Straight Hook Blade | 220mm |
| 147.6 | Left-bent Hook Blade | 220mm |
| 147.7 | Right-bent Hook Blade | 220mm |

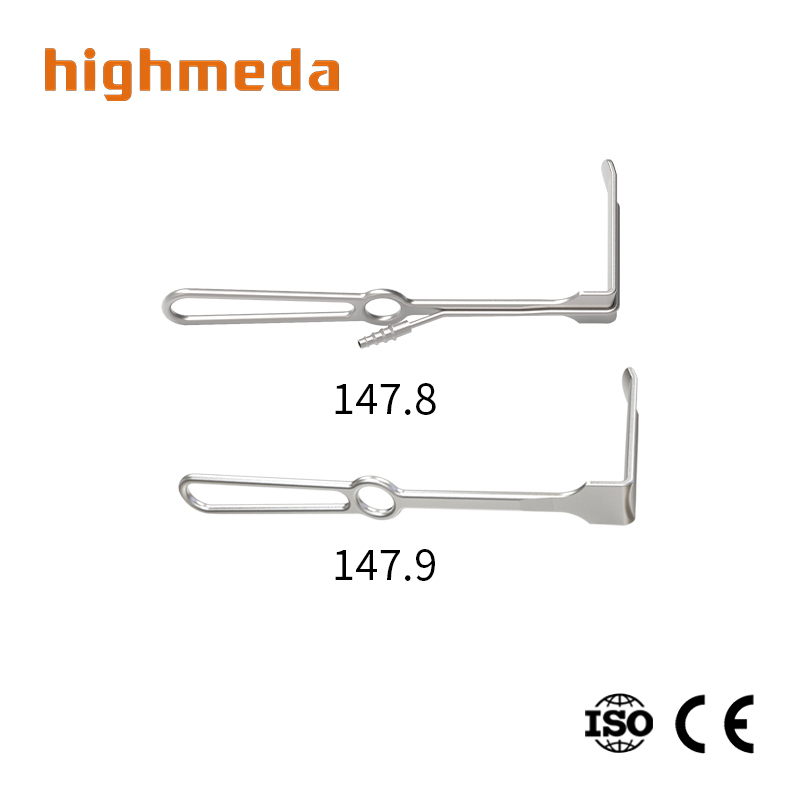

| 147.8 | Hook Blade | 235mm |
| 147.9 | Hook Blade | 25mm |
| 147.10 | Hook Blade | 250mm |
| 147.11 | Oral Retractor | 130mm |
| Quality Certification | ISO13485/ISO9001/ISO14001/ISO45001 |
| Type of Usage | Reusable |
| Shelf Life | 5 Years |
| Warranty | 1 Year |
Thyroid retractors are indispensable specialized instruments in subtotal or total thyroidectomy. They are primarily used to retract the thyroid gland and expose important anatomical structures such as the superior and inferior poles of the thyroid and the entry point of the recurrent laryngeal nerve into the larynx. With the popularization of minimally invasive techniques, modern thyroid retractors have evolved from single flat - hook tools to a diversified product series covering open surgery and endoscopic - assisted surgery. They have gradually integrated suction, illumination, and suspension functions, aiming to provide surgeons with a clear and stable surgical field while minimizing damage to the anterior cervical muscles and surrounding tissues.
Core Features and Values
1. Differentiated hook - head design for multiple approaches
- Traditional open retractors: They are in the shape of flat hooks or shallow curves and come in various specifications. They are suitable for thyroid retraction . There are multiple options for the length of the hook body according to the thyroid volume of different patients to achieve precise exposure.
- Endoscopic - specific retractors: They are designed for endoscopic thyroidectomy via infraclavicular or axillary approaches. These retractors are usually used in conjunction with a suspension system, which can create an operating space without inflation. This not only avoids CO₂ - related complications but also significantly reduces the patient's postoperative swallowing discomfort as the natural anatomical structure of the anterior cervical region remains intact.
2. Suspension and fixation system
- Stable support system: The product includes a bedside fixing clip, a vertical rod, a horizontal rod, and a lifting device with a lock. Made of imported 630 stainless steel, it ensures that the vertical pulling force can reach 50N after fixation with a deformation of ≤1cm, providing a stable and unobstructed surgical field.
- Multi - dimensional adjustment: The support rod has height adjustment and rotation locking functions, allowing surgeons to flexibly adjust the retraction direction and force according to surgical requirements.
