Trocar (Magnetism) |
Model No. | Type of clamp head
| Specification |

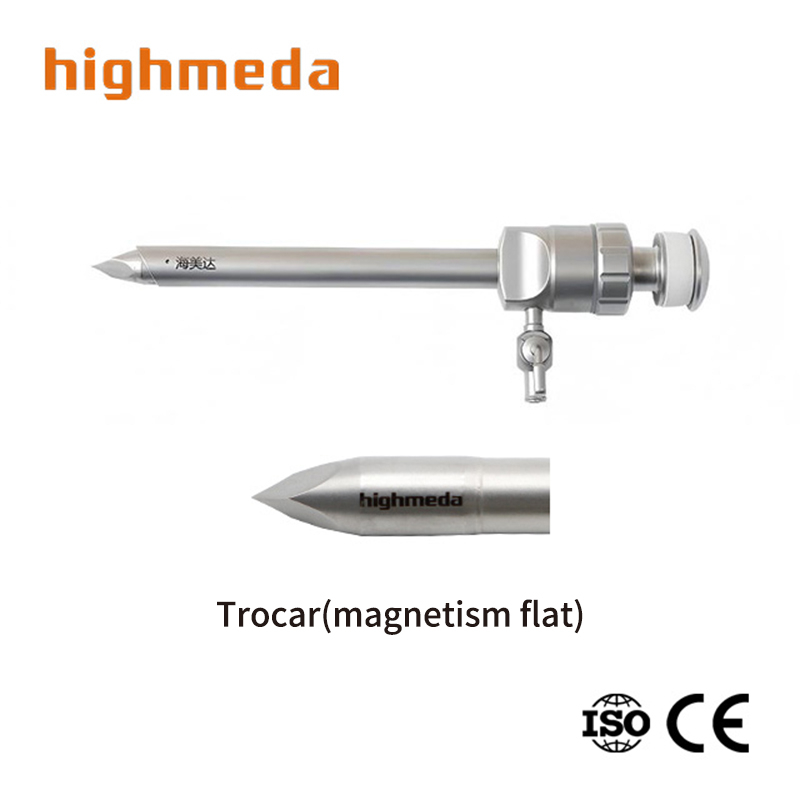

| 277.3.05 | Trocar (Magnetism) | Ф5.5×95 |
| 277.3.10 | Trocar (Magnetism) | Ф10.5×95 |
| 277.3.12 | Trocar (Magnetism) | Ф12.5×95 |
| 277.3.13 | Trocar (Magnetism) | Ф13.5×95 |
| 277.3.15 | Trocar (Magnetism) | Ф15.5×95 |

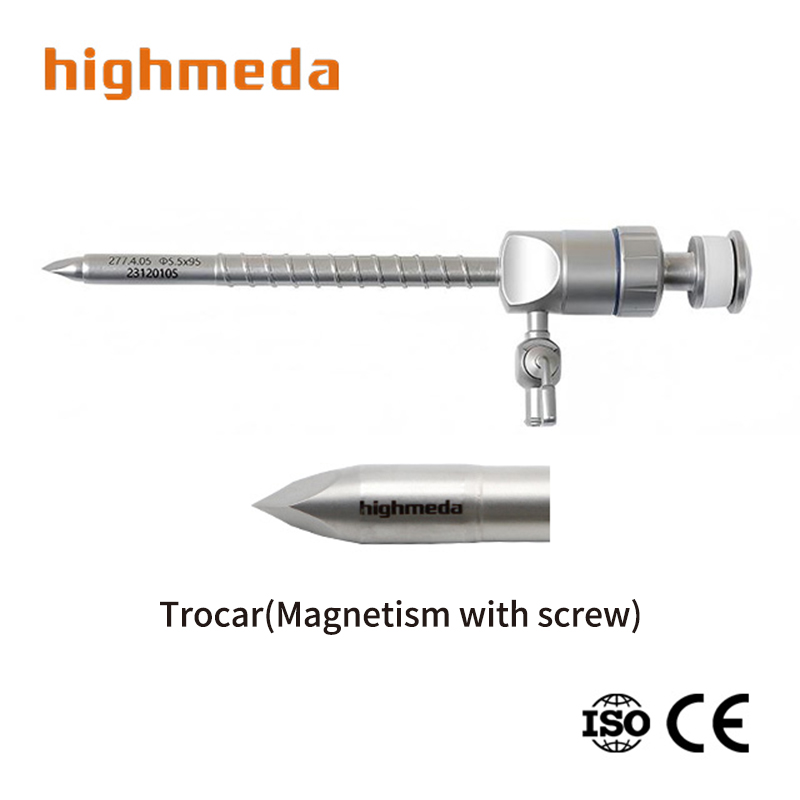

| 277.4.05 | Trocar (Magnetism with screw) | Ф5.5×95 |
| 277.4.10 | Trocar (Magnetism with screw) | Ф10.5×95 |
| 277.4.12 | Trocar(Magnetism with screw) | Ф12.5×95 |
| 277.4.13 | Trocar(Magnetism with screw) | Ф13.5×95 |
| 277.4.15 | Trocar(Magnetism with screw) | Ф15.5×95 |
| Quality Certification | ISO13485/ISO9001/ISO14001/ISO45001 |
| Type of Usage | Reusable
|
| Shelf Life | 5 Years |
| Warranty | 1 Year |
The magnetic trocar incorporates a revolutionary magnetic sealing technology. By precisely controlling the alignment of stainless steel valve plates through magnetic force, it achieves smooth valve opening and closing. This design significantly reduces mechanical wear, providing a smoother and quieter instrument passage, while offering an exceptionally long service life. It represents the cutting-edge development direction in trocar sealing technology. The magnetic threaded trocar integrates magnetic sealing technology with a helical thread fixation structure, ensuring absolute stability of the surgical channel through active fixation.
Core Features and Values:
· Magnetic Sealing Technology: Smooth operation with minimal wear, theoretically extending service life.
· Superior Passage Performance: Reduced resistance during instrument insertion and extraction, enhancing operational tactile feedback.
