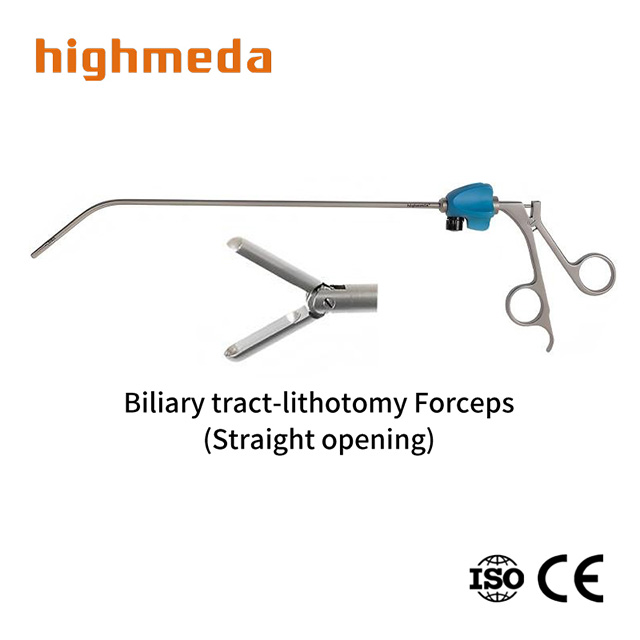

How to Choose Laparoscopic Lithotomy Forceps for Bile Duct Stone Retrieval

Managing choledocholithiasis presents a nuanced clinical challenge. Surgical preferences are pivoting from traditional two-stage ERCP procedures toward single-stage Laparoscopic Common Bile Duct Exploration (LCBDE). Extracting these stones from the delicate biliary tract requires absolute precision. Picture a surgeon navigating a narrow, inflamed 6-millimeter duct. The margin for error is virtually nonexistent. Relying on substandard or incorrectly sized instruments frequently leads to fragmented stones, severe mucosal injuries, and prolonged operative times.

In this comprehensive guide, surgical professionals and hospital procurement teams will discover how to evaluate and select the optimal instruments for safe, efficient procedures. We will focus heavily on jaw architecture, shaft ergonomics, and material integrity from a practical, engineering perspective.

Industry Trends: The Shift Toward Minimally Invasive Precision

Recent global surgical data indicates a compound annual growth in single-stage LCBDE procedures. This shift is primarily driven by the clinical desire to reduce patient hospital stays and avoid ERCP-related pancreatitis. As minimally invasive techniques become the definitive gold standard, the market is witnessing a surge in demand for highly specialized, ergonomically advanced extraction tools. Medical device manufacturers are responding by shifting away from rigid, bulky designs. Instead, they are developing ultra-precise, 5mm instruments that preserve the sphincter of Oddi while maximizing tactile feedback. This industry-wide pivot underscores a broader healthcare objective: achieving maximum clinical efficacy with minimal iatrogenic trauma.

Key Takeaways

• Precision is Key: The optimal forceps must provide a secure grip without exerting excessive pressure. This prevents crushing fragile gallstones and minimizes residual fragments in the duct.

• Design Matters: The anatomical shape of the jaw—such as fenestrated versus spoon-shaped—dictates how safely the tool navigates the bile duct.

• Cost vs. Value: Deciding between reusable and disposable tools depends heavily on internal sterilization capabilities, case volume, and long-term budget.

• System Compatibility: High-quality extraction tools must work seamlessly with standard 5mm trocars and flexible choledochoscopes.

• Evidence-Based Selection: Adhering to clinical guidelines ensures the chosen instruments actively reduce surgical complications.

The Role of Laparoscopic Lithotomy Forceps in Modern Biliary Surgery

Evolution from Open Surgery to LCBDE

The surgical management of common bile duct stones has undergone a significant paradigm shift. Historically, open cholecystectomy combined with open duct exploration was the definitive standard of care. However, the advent of minimally invasive techniques has largely replaced these highly invasive procedures. Today, hepatobiliary surgeons increasingly prefer LCBDE to reduce patient trauma and accelerate recovery.

As the surgical approach evolved, the instrumentation had to adapt. Early open surgery tools were simply too bulky for minimally invasive ports. Consequently, specialized hepatobiliary laparoscopic instruments were engineered to fit seamlessly through standard 5mm trocars. These modern devices are meticulously designed. They maintain critical tactile feedback over a 330mm shaft, allowing surgeons to manipulate tissues and extract stones with the exact dexterity they once commanded in open surgery.

LCBDE vs. ERCP: Why Instrument Quality Matters

In contemporary clinical practice, an ongoing debate exists regarding the most effective treatment pathway for synchronous gallbladder and common bile duct stones. The options are a single-stage LCBDE or a two-stage procedure involving ERCP. Recent clinical analyses highlight a pronounced shift toward the single-stage LCBDE approach. This method preserves the sphincter of Oddi, significantly reduces total hospital stays, and lowers overall healthcare expenditures.

Nevertheless, the success of LCBDE relies entirely on the mechanical reliability of the extraction tools. If the jaws fail to grasp the calculus securely, the stone may shatter. The surgeon might then be forced to convert to an open procedure. Therefore, investing in premium retrieval instruments is not merely a matter of convenience; it is a fundamental factor in procedural success.

Key Anatomical Considerations for Biliary Lithotomy Forceps

Navigating the Common Bile Duct (CBD)

Measuring merely 6 to 8 millimeters in an average healthy adult, the common bile duct is a delicate, tubular structure. It is lined with highly sensitive mucosa. This inner lining is exceptionally susceptible to iatrogenic injury. When a surgeon introduces a steel instrument into this confined space, the margin for error vanishes entirely.

From a structural design perspective, tools utilized within the CBD must feature a strictly atraumatic profile. If the jaws are too sharp or the opening mechanism is overly aggressive, mucosal tearing is almost guaranteed. The ideal instrument is crafted with blunt edges and controlled jaw articulation. This allows the operator to navigate the natural curve of the biliary tree without inflicting collateral damage.

Handling Different Types of Stones

Gallstones are far from uniform. They vary drastically in chemical composition, size, and structural integrity. Cholesterol stones are typically harder and larger, requiring a firm, wide grip to dislodge. In contrast, brown and black pigment stones are notoriously softer, brittle, and highly prone to crumbling.

The inherent fragility of the stone dictates the required grip mechanics. For instance, deploying a high-force, narrow-jawed grasper on a crumbly pigment stone will cause it to shatter into a flurry of debris. Instead, utilizing a streamlined, spoon-shaped profile allows the operator to gently wedge the jaws around the calculus. This cradles the stone securely, dislodging it without traumatizing the surrounding ductal wall.

Essential Features to Look for in Bile Duct Stone Retrieval Forceps

Jaw Design and Grip Mechanics

The jaw architecture is arguably the most paramount feature of any stone retrieval device. Different clinical scenarios demand distinct jaw configurations to ensure a safe extraction.

Fenestrated jaws feature open windows in the blades. This allows bile and irrigation fluid to pass through while maintaining a solid grip. Spoon-shaped or cup jaws form a small enclosure when closed. They are the absolute best choice for scooping fragile pigment stones without applying crushing force. Furthermore, jaws with fine, atraumatic serrations prevent slippery cholesterol stones from escaping. Choosing the right biliary lithotomy forceps directly impacts the speed and safety of the extraction.

Core Comparison Table: Jaw Designs

Shaft Length and Diameter

The physical dimensions of the forceps must align perfectly with the patient's anatomy. The standard shaft length for most high-quality laparoscopic instruments is 330mm. This provides ample reach for the average adult patient. For bariatric patients, extended shaft lengths of 430mm become necessary to reach the biliary tract without compromising ergonomic motion.

Equally critical is the shaft diameter. A standard 5mm diameter is universally recommended. Utilizing 5mm instruments allows the forceps to pass seamlessly through standard secondary ports. This strict adherence to smaller diameters directly contributes to reduced post-operative pain and a significantly lower risk of incisional hernias.

Handle Ergonomics and Tactile Feedback

During a laparoscopic procedure, the surgeon's hands are physically separated from the target tissue by over 300 millimeters of steel. Consequently, the handle must accurately translate subtle resistance from the jaw tips back to the operator's fingers. This phenomenon, known as tactile feedback, is vital.

Facilities typically choose between ring handles and pistol grips. Ring handles offer precise, rotational control. This is excellent for delicate, sweeping maneuvers inside the CBD. Premium instruments are engineered to minimize internal friction within the shaft. This ensures the surgeon can accurately "feel" the calculus's density and modulate their grip strength accordingly.

Reusable vs. Disposable Laparoscopic Stone Forceps

Reusable Forceps: Pros and Cons

For high-volume surgical centers, investing in reusable instrumentation represents a sound financial strategy. These durable laparoscopic stone forceps are typically manufactured from premium medical-grade stainless steel, such as 304 or 316L. The 316L variant offers superior structural rigidity and precise tactile feedback. Over hundreds of procedures, their cost-per-case diminishes significantly. Additionally, they generate far less medical waste.

However, the primary drawback lies in the burden of reprocessing. Reusable instruments feature complex hinges that demand rigorous sterilization protocols. Over extended periods, these moving parts can degrade, necessitating periodic maintenance.

Disposable Forceps: Pros and Cons

Single-use instruments have rapidly gained traction due to their logistical convenience. Disposable options offer absolute sterility straight out of the package. Because they are utilized only once, the jaws remain perfectly aligned, and the mechanical action is consistently smooth.

Conversely, the continuous purchasing cycle results in a substantially higher per-procedure cost. The environmental impact of discarding complex plastic and metal devices is also becoming a pressing concern for forward-thinking administrators.

Making the Right Choice for Your Facility

The decision should stem from an objective audit of the facility's operational realities. Hospitals boasting a high volume of LCBDE cases alongside a highly efficient CSSD will benefit most from reusable instruments. Smaller ambulatory surgery centers may find disposable instruments to be a more predictable logistical choice.

Compatibility with Hepatobiliary Laparoscopic Instruments

Integration into the Surgical Tray

A successful single-stage biliary procedure relies on a cohesive ecosystem of tools. The extraction forceps cannot function in isolation. Specifically, the instrument must be dimensionally compatible with the facility's existing 5mm trocars. It must pass through the valve seals smoothly without causing frustrating gas leaks.

During LCBDE, these forceps are frequently deployed in tandem with flexible choledochoscopes. Procurement teams must verify that the selected tools do not obstruct the delicate optics of the choledochoscope. Sourcing from a unified catalog can proactively prevent these compatibility hurdles.

Synergy with Other Clamps and Graspers

The initial dissection of Calot's triangle requires surgeons to cycle rapidly through multiple devices. The chosen extraction tool must operate in perfect synergy with Maryland dissectors and titanium clip appliers. For instance, while an atraumatic grasper retracts the gallbladder fundus, specialized common bile duct forceps are carefully navigated to extract the exposed stones. Maintaining consistency in handle design across all instruments significantly reduces surgeon fatigue.

Preventing Complications: Best Practices and Techniques

Avoiding Stone Fragmentation

One of the most frustrating complications during LCBDE is the fragmentation of a stone within the duct. When a calculus breaks, the resulting fragments can migrate distally toward the ampulla of Vater. This makes them incredibly difficult to retrieve while sharply increasing the risk of post-operative pancreatitis.

To circumvent this, operators must apply gradual, highly calculated pressure. If a stone feels excessively brittle, it is far safer to utilize spoon-shaped jaws to cradle it. Should fragmentation occur, the surgeon must immediately deploy copious saline irrigation to flush the duct, often utilizing smaller retrieval baskets to clear the residual debris.

Minimizing Bile Duct Injury (BDI)

Bile duct injury is a catastrophic complication that can precipitate biliary leaks and peritonitis. To mitigate this risk, surgical teams must adhere strictly to clinical guidelines regarding safe tissue handling.

The specific choice of jaw action plays a pivotal role. Double-action jaws open wider, which is excellent for capturing large stones in a dilated duct. However, single-action jaws—where one blade remains stationary—offer a more targeted approach. This configuration drastically reduces the risk of accidentally grabbing the posterior wall of the CBD in confined spaces.

Buyer’s Guide: How to Evaluate a Medical Device Manufacturer

Regulatory Certifications (CE, FDA, ISO)

When evaluating potential suppliers, strict regulatory compliance serves as the ultimate baseline. Instruments utilized within the biliary tract must hold relevant certifications, such as the CE mark or FDA clearance. Furthermore, verifying that the manufacturer operates under ISO 13485 standards guarantees unwavering safety and reliability.

Material Quality and Manufacturing Precision

The clinical performance of any reusable surgical instrument is dictated by its metallurgical composition. For tools operating in corrosive environments, high-grade medical stainless steel (304 or 316L) is absolutely mandatory. The 316L variant is particularly favored due to its added molybdenum content. This significantly enhances resistance to pitting and corrosion during harsh autoclave cycles.

Warranty, Maintenance, and Vendor Support

Procuring surgical instrumentation is a long-term institutional commitment. Forward-thinking procurement teams must rigorously evaluate the vendor's after-sales support. A highly reputable manufacturer will proudly offer comprehensive warranties covering structural defects. They should also provide crystal-clear Instructions for Use (IFU) regarding sterilization parameters.

Conclusion

Selecting meticulously engineered forceps is the cornerstone of safe, effective bile duct stone retrieval. Proper jaw architecture and refined ergonomics empower the surgeon to navigate delicate anatomy while actively preventing dangerous stone fragmentation. Hospitals must continuously balance clinical safety imperatives with smart procurement goals. By thoroughly evaluating material quality, mechanical precision, and regulatory certifications, clinical teams can ensure superior surgical outcomes.

If your surgical center is looking to upgrade its hepatobiliary toolkit, it is crucial to partner with a proven manufacturer. We highly recommend exploring the premium selection of bile duct stone retrieval forceps and other specialized instruments available at Highmeda Medical. Their commitment to 316L stainless steel precision, ergonomic design, and rigorous ISO standards ensures your surgical inventory remains a powerful asset to patient care.

FAQ (Frequently Asked Questions)

What is the difference between standard grasping forceps and biliary lithotomy forceps?

Standard laparoscopic graspers, such as Maryland or Babcock forceps, are engineered primarily for tissue manipulation and robust dissection. They often feature aggressive serrations designed to grip soft tissue firmly. In stark contrast, biliary lithotomy forceps are highly specialized instruments tailored for the fragile environment of the common bile duct. Their jaws are typically spoon-shaped, cup-shaped, or delicately fenestrated. This specialized geometry allows the instrument to gently cradle and extract gallstones, distributing pressure evenly to prevent crushing the calculus.

What size trocars are compatible with most common bile duct forceps?

The vast majority of modern extraction forceps are manufactured with a standard 5mm shaft diameter. This specific dimension is highly intentional, allowing the instrument to pass seamlessly through the standard 5mm working trocars routinely utilized during laparoscopic cholecystectomies. Utilizing 5mm instruments upholds the core principles of minimally invasive surgery: minimizing abdominal wall trauma and accelerating patient recovery times.

How do you properly sterilize reusable laparoscopic lithotomy forceps?

Sterilizing reusable surgical instruments requires rigorous adherence to the manufacturer's Instructions for Use (IFU). The process must commence immediately at the point of use with a thorough pre-cleaning. In the CSSD, the tools should be soaked in an enzymatic detergent. Ultrasonic cleaning is highly recommended to dislodge microscopic bioburden from the intricate hinge mechanisms. Following a meticulous visual inspection, the instruments are typically sterilized using a standard steam autoclave cycle at 134°C (273°F) for 3 to 18 minutes.

Can these forceps be used for both cholesterol and pigment stones?

Yes, these specialized instruments are designed to handle various types of biliary stones. However, the surgeon must dynamically adjust their technique based on the stone's specific composition. Cholesterol stones are generally harder and can withstand a firmer grip. Pigment stones are notoriously brittle. When dealing with pigment stones, utilizing forceps equipped with atraumatic, cup-shaped jaws is strongly recommended, as the cup design encapsulates the stone rather than pinching it.

Are double-action jaws better than single-action jaws for stone retrieval?

The choice between double-action and single-action jaws depends entirely on the specific anatomical constraints. Double-action jaws feature two moving components that open symmetrically, providing a wider jaw aperture superior for capturing larger gallstones. Single-action jaws feature one fixed lower jaw and one moving upper jaw. This configuration offers greater rigidity, allowing the surgeon to carefully slide the fixed jaw beneath an impacted stone within a narrow duct.

How do fenestrated jaws prevent stone fragmentation during extraction?

Fenestrated jaws are designed with open "windows" in the center of the grasping blades. When capturing a stone, this design allows excess bile, irrigation fluid, and even small amounts of mucosal tissue to safely bypass the grip area. More importantly, the fenestration distributes the mechanical clamping force along the outer edges of the stone rather than concentrating it in the center. This even distribution of pressure significantly reduces the point-load stress on brittle calculi, thereby minimizing the risk of fragmentation.

Can laparoscopic lithotomy forceps be used for intrahepatic stones?

While primarily designed for the common bile duct, appropriately sized laparoscopic lithotomy forceps can sometimes be utilized for stones located in the lower portions of the hepatic ducts. However, navigating deep into the intrahepatic biliary tree often requires more flexible instrumentation, such as choledochoscopes paired with specialized wire baskets or laser lithotripsy fibers. Rigid 5mm steel forceps are limited by their straight shafts, making them ideal for the CBD but less suited for the tortuous, highly angled branches of the intrahepatic system.
