A distended bowel or a heavy, steatotic liver slipping mid-dissection is more than a mere nuisance. It is a severe clinical risk. Retracting heavy, slippery organs safely requires absolute mechanical precision. You need a tool that maintains a pristine surgical field without inflicting micro-trauma on fragile tissues.
From an instrument engineering perspective, the choice between retraction mechanisms dictates both your operative speed and patient safety. In this technical breakdown, we will examine the critical biomechanical differences between three-leaf and five-leaf retractors. By the end, you will know exactly how to optimize your surgical toolkit for peak efficiency and long-term cost savings.
Key Takeaways
Mechanical Spread: The five-leaf configuration deploys a significantly wider surface area. This broad footprint is engineered for manipulating heavy, dense organs. Conversely, the three-leaf model features a narrow, agile profile tailored for confined pelvic spaces.
Hepatic Safety: For liver elevation, the five-leaf model is the undisputed gold standard. Its expanded span distributes weight evenly across Glisson's capsule, effectively neutralizing the risk of localized tissue laceration.
Port Compatibility: While both utilize standard minimally invasive ports, their internal push-pull rod mechanisms differ. Three-leaf models typically slide through a 5mm trocar, whereas the stacked blades of a five-leaf design require a 10mm port.
Procurement ROI: Transitioning to high-grade, reusable stainless steel instruments slashes long-term operational costs and eliminates the structural flexing common in disposable plastics.
What is a Laparoscopic Fan Retractor?
Often referred to in the OR as a kite-shaped or finger retractor, a laparoscopic tissue retractor is a highly specialized articulating instrument. It functions as an uncompromising third hand for the surgical team. The device enters the pneumoperitoneum in a closed, streamlined state. Once at the target site, the surgeon actuates a tactile rotary knob or trigger on the proximal handle. This drives an internal rod, forcing the distal blades to fan out into a rigid, supportive plane.
During complex abdominal interventions, structures like the stomach or omentum aggressively obscure the operative field. A precisely engineered retractor elevates these tissues and locks them out of the way. Crucially, it achieves this holding force without inducing localized ischemia or crushing visceral surfaces.
Let us look at the anatomy of the device. The proximal handle houses the articulation control. A fully insulated, elongated shaft—typically measuring 330mm in working length—bridges the surgeon to the operative bed while shielding the patient from stray electrosurgical currents. At the distal end, the articulating leaves feature atraumatic, blunt edges machined to glide smoothly against delicate serosal layers.

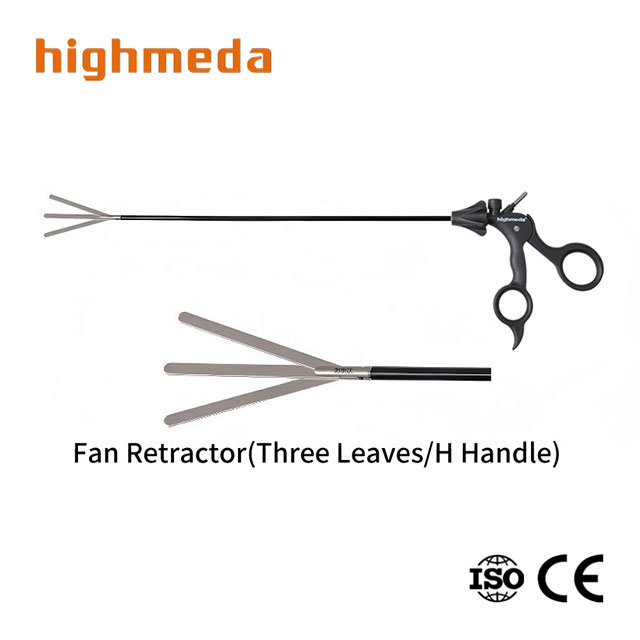

The Three-Leaf Fan Retractor: Precision in Tight Spaces
From a mechanical standpoint, the three-leaf fan retractor is defined by its streamlined agility. When deployed, its three interlocking blades expand to create a moderate, focused surface area. Because the design relies on fewer pivot points, the maximum spread angle is intentionally narrow. The central blade remains relatively static, while the two outer fingers articulate outward and lock to form a rigid shelf.
This minimalist design translates to distinct intraoperative advantages. Superior maneuverability is its greatest asset. In highly restricted anatomical zones—such as deep pelvic dissections or lower GI interventions—a narrow profile is mandatory. It allows the surgeon to retract specific tissues without aggressively stretching or bruising adjacent structures. Furthermore, the simplified internal linkage results in rapid deployment and effortless repositioning.
Clinically, this configuration shines when handling lighter, less dense tissues. It is the preferred instrument for mobilizing the gallbladder, displacing isolated bowel loops, or pediatric laparoscopic cases. In adult patients with smaller anatomies, deploying a massive five-leaf device would simply overcrowd the cavity and obstruct the laparoscope.
The Five-Leaf Fan Retractor: Maximum Load Bearing
Engineered strictly for heavy-duty structural stability, the five-leaf model features stacked leaves that fan out to a massive span. This expansion is rooted in basic biomechanics. By distributing the mechanical load across five distinct contact points, the instrument drastically reduces focal pressure on the retracted organ.
Surgeons managing high-BMI patients understand the danger of a heavy, fatty liver slipping off a narrow blade. Thanks to its superior weight distribution, this design is the definitive liver retractor. The hepatic surface is highly vascular and incredibly fragile. During bariatric procedures like a Roux-en-Y gastric bypass, the liver must be securely elevated for hours. The broad five-leaf span prevents the metal edges from slicing into the parenchyma, thereby averting catastrophic intraoperative bleeding.
Beyond safety, it delivers absolute visual stability. By securely pinning back massive anatomical structures, it grants the primary surgeon an unobstructed, panoramic field of view. This practically eliminates the cognitive fatigue of constantly fighting organs that slip back into the dissection plane.
Head-to-Head Comparison: Three-Leaf vs Five-Leaf
To make an informed procurement decision, you must evaluate these instruments across hard performance metrics. The structural differences directly dictate their clinical application.
Feature
Three-Leaf Retractor
Five-Leaf Retractor
Standard Shaft Diameter
5mm
10mm
Surface Area / Spread
Narrow to Moderate
Wide / Maximum Coverage
Primary Clinical Use
Gallbladder, Spleen, Bowel loops, Pediatric
Liver elevation, Bariatric, Heavy organs
Visual Obstruction
Minimal
Moderate (takes up more space)
Tissue Trauma Risk (Heavy Loads)
Higher (focal pressure)
Extremely Low (distributed pressure)
Physics dictates that pressure equals force divided by area. A five-leaf fan retractor maximizes area, meaning tissue trauma is minimized when lifting heavy loads. The trade-off? Port size. Three-leaf versions typically slide through a 5mm trocar, minimizing fascial incisions and hernia risks. The complex stacked blades of a five-leaf model require a 10mm trocar. Surgical teams must factor this into their preoperative port mapping.
Industry Trends: The Shift in Laparoscopic Retraction
Surgical instrumentation is evolving rapidly in response to shifting global demographics. With the sharp rise in obesity rates, surgical departments are seeing a massive surge in bariatric and complex hepatobiliary procedures. Consequently, the demand for high-torque, wide-span instruments has skyrocketed. Surgeons simply cannot rely on flimsy tools when retracting heavily steatotic tissues.
Simultaneously, healthcare administrators are aggressively targeting sustainability. Regulatory bodies are pushing hospitals to reduce Scope 3 carbon emissions and hazardous medical waste. This has triggered a massive industry pivot away from single-use plastics. Procurement teams are now standardizing high-grade stainless steel reusable instruments. These tools offer uncompromising rigidity under load and align perfectly with modern eco-friendly healthcare mandates.
Actionable Guide: Choosing the Right Retractor
Selecting the right device is not about finding a universally "better" tool. It is about matching mechanical specs to the clinical reality on the table. Use this criteria before making an incision:
Assess Patient Anatomy: For pediatric cases or low-BMI adults, a 5mm three-leaf design is ideal. It prevents instrument clashing in a tight peritoneal cavity. However, if the patient presents with hepatomegaly or high BMI, a 10mm five-leaf model is non-negotiable for safe elevation.
Identify the Procedure Type: Upper GI and bariatric surgeries demand robust liver retraction—default to the five-leaf. For appendectomies, gynecological interventions, or lower GI work, the agility of the three-leaf model wins out.
Evaluate Ergonomics: Some surgeons prefer the lightweight feedback of a 5mm tool to reduce hand fatigue during marathon cases. Others demand the absolute rigid lock of a 10mm device, accepting the slightly heavier handle.
Reusable vs. Disposable: Maximizing Hospital ROI
Hospital administrators constantly walk a tightrope between clinical excellence and budget constraints. When it comes to heavy-duty retraction, the debate between single-use plastics and durable metals is effectively over.
Upgrading to a reusable laparoscopic retractor is a high-yield strategic move. Disposable retractors, often injection-molded from lower-tier polymers, are notorious for flexing or snapping under heavy hepatic loads. Reusable alternatives are forged from premium, biocompatible stainless steel. They are engineered for zero-flex rigidity.
This material choice guarantees exceptional tensile strength and immunity to corrosion. Even after hundreds of cycles through harsh enzymatic cleaners and high-temperature autoclaves, the metallurgical integrity holds. The articulating joints will not suffer from mechanical seizing or pitting.
Financially, the Return on Investment (ROI) is staggering. While the initial capital expenditure for a stainless steel instrument exceeds a box of disposables, the cost-per-use plummets to fractions of a cent over its lifecycle. High-volume surgical centers typically hit their break-even point in under four months, yielding years of pure operational savings thereafter.
Maintenance and Sterilization Protocols
To protect your investment, your Central Sterile Services Department (CSSD) must follow strict maintenance protocols. The articulating hinges and the internal push-pull rod are the most vulnerable points. Blood and fat easily migrate into these micro-crevices.
Immediately post-op, the instrument must be flushed with enzymatic detergent at the point of use. In the CSSD, technicians must manually brush the hinges while actively opening and closing the mechanism. This dynamic agitation prevents bio-burden from hardening inside the joints, which causes stiffness and cross-contamination risks.
Prior to autoclaving, inspect the leaves for bending and test the rotary knob for smooth tactile feedback. The instrument must always be sterilized in the fully open (deployed) position. This guarantees that high-pressure steam penetrates all overlapping metal surfaces. Finally, routine application of steam-permeable surgical lubricant to the hinges ensures the tool performs like new for the surgeon.
Conclusion
Deploying the correct fan retractor directly impacts operative speed and patient safety. The 5mm three-leaf design offers unmatched agility for tight spaces and lighter organs. In contrast, the 10mm five-leaf model is the ultimate workhorse for heavy hepatic retraction, distributing weight safely across delicate tissues. By aligning your instrument choice with patient anatomy, procedure type, and hospital sustainability goals, you elevate both clinical outcomes and procurement efficiency.
Ready to upgrade your surgical instrument trays with zero-flex, premium stainless steel retractors? Explore the complete range of high-performance laparoscopic instruments at Highmeda Medical and equip your OR with tools engineered for absolute precision.
FAQ (Frequently Asked Questions)
What is the standard diameter for a laparoscopic fan retractor?
Most standard laparoscopic fan retractors feature shaft diameters of either 5mm or 10mm. The 5mm shafts are typically paired with three-leaf designs to minimize trocar incision size. The 10mm shafts are required for five-leaf designs to house the complex internal linkage. Both variants standardly offer a 330mm to 350mm working length, providing excellent reach into deep pelvic or upper abdominal cavities.
Can a three-leaf fan retractor be used as a liver retractor?
While technically possible in pediatric cases or very small adults, clinical consensus strongly advises against using a three-leaf model for adult liver retraction. The adult liver is dense, heavy, and highly vascular. A three-leaf design concentrates lifting force over a narrow area, drastically increasing the risk of capsular tearing or the organ slipping mid-dissection. A five-leaf model is the required standard for safe hepatic manipulation.
How do you deploy a fan retractor inside the abdomen?
The instrument enters the trocar in a fully closed, straight profile. Once the blunt tip is safely positioned under laparoscopic visualization, the surgeon actuates a mechanism on the handle—usually a rotary knob or ratcheted trigger. This pulls an internal driving rod, forcing the distal leaves to articulate outward and lock into a rigid, fan-like plane.
Are reusable laparoscopic fan retractors safe to autoclave?
Absolutely. Premium reusable fan retractors are forged from medical-grade stainless steel specifically to withstand thousands of high-temperature steam sterilization (autoclave) cycles. However, sterilization is only successful if the instrument is perfectly clean. CSSD technicians must dynamically brush and flush the hinges and internal lumens with enzymatic detergents to remove microscopic bio-burden before autoclaving.
What is the maximum spread angle of a laparoscopic fan retractor?
The maximum spread angle depends heavily on the blade configuration. A standard three-leaf retractor typically expands to an angle of roughly 45 to 60 degrees, providing a focused retraction plane. A five-leaf retractor, designed for maximum coverage, can expand to an angle between 80 and 100 degrees. This wider geometry is what gives the five-leaf model its superior load-bearing capacity for heavy organs.
How do you prevent a laparoscopic fan retractor from getting stiff over time?
Mechanical stiffness is almost always caused by inadequate cleaning or lack of lubrication. Bio-burden trapped inside the micro-hinges will harden during the autoclave cycle. To prevent this, the instrument must be dynamically cleaned—meaning the hinges are repeatedly opened and closed while submerged in enzymatic cleaner. Post-cleaning, applying a medical-grade, steam-permeable instrument lubricant directly to the joints before sterilization will keep the action smooth and responsive.
